XS INLINE

Ultra-compact, integrated fibre laser marking head

For technical documentation, visit the extranet !

Discover the smallest fibre laser marking head on the market, specially designed for optimum integration on your production lines. Its ultra-compact size (255 x 76 x 121mm) and three-sided mounting make it easy to install. As well as ensuring accurate marking, it incorporates advanced technology that automatically reads and verifies 1D and 2D codes to guarantee their quality. With Ethernet/IP or Profinet connectivity, this solution meets the demands of modern industrial environments. Thanks to its standalone mode, the marking process is fully automated, eliminating the need for manual intervention and ensuring maximum productivity on your production lines.

Why is XS Inline made for you?

Reduced dimensions

Ultra-compact equipment

The compactness of our fibre laser marking head makes it a real revolution on the market. With its extremely compact dimensions, it offers unrivalled flexibility, enabling it to be integrated into even the most confined spaces on production lines.

This ultra-compact design makes no compromises on performance, and is extremely easy to install, thanks to three mounting faces that can be adapted to any configuration. By reducing the footprint to an absolute minimum, this marking head opens up new possibilities for optimising your industrial equipment, while maintaining accurate, reliable marking.

1D/2D code reading functions

Our fibre laser marking head incorporates advanced technology to guarantee impeccable marking quality. Thanks to its ability to automatically read and verify 1D and 2D codes directly after marking, it ensures optimum traceability and reduces the risk of errors.

This feature saves time by eliminating manual checks, while enhancing the reliability of your processes. Ideal for demanding industrial environments, this innovation helps ensure maximum productivity and consistent quality on your production lines.

Network connectivity

With its advanced connectivity via Ethernet/IP or Profinet, our fibre laser marking head integrates perfectly into modern industrial environments. These protocols enable fast, reliable communication with your equipment, making it easy to control remotely and integrate into your existing systems.

This connectivity optimises the management of your production lines, offering real-time traceability and simplified configuration. With this solution, you benefit from a connected infrastructure ready for Industry 4.0, combining performance, precision and modernity.

FIBER LASER TECHNOLOGY

parts of all sizes

medium to large series

SEVERAL WINDOW SIZES

high performance marking 24/7

2 POWERS AVAILABLE

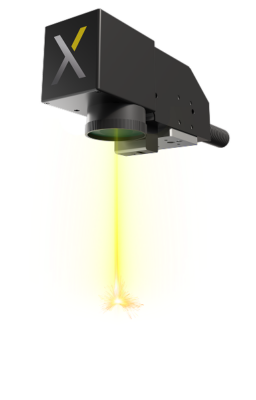

The smallest integrated fibre laser marking solution on the market

XS Inline - tête + contrôleur vue gauche-Caméra

2 operating modes

PC operation :

Computer connected to the same network as the marking station
Saving files and logos on the network
Slave control via RS232 and Ethernet TCP/IP

Standalone operation :

Ethernet TCP/IP
Ethernet/IP or Profinet field network
Backup of files and logos on a shared network

Simple, precise installation

Adjustable mounting plate for focal length adjustment
3 mounting faces

Fiber laser head

2 marking window sizes

100 mm x 100 mm with 160° focal length
140 mm x 140 mm with 254 focal length

Inputs/Outputs

8 inputs: start marking, load file, reset serial number, etc.
8 outputs: system ON, laser error, marking in progress, etc.

Wide choice of marking types

Software with advanced features

CSV and SQL database import
Profile management: user and supervisor
Marking history
Multilingual software
Simulation of the marking zone on the part
Choice of field network: Profinet or Ethernet/IP
PC control or standalone operation

Request a demonstration

Applications and technical features

Laser

Marking windows	100 x 100 mm or 140 x 140 mm
Power supply	100/240 VAC – 50/60 Hz
Laser type	Class 4 fibre laser
Available powers	20W, 30W
Z-axis adjustment plate	20 mm stroke
Wavelength	1060-1085 nm
Weight	2,1 kg
Dimensions	W: 255 mm, D: 76 mm, H: 121 mm
Composition	Aluminium

Connectors	8-pin connector – safety sensor and 24V output 12-pin connector – inputs/outputs DB9 Male connector – rotary axis and motorised Z axis 3 Ethernet port – network connection Power button
Dimensions	W: 366 mm, D: 324 mm, H: 152 mm
Weight	8,9 kg
Composition	Aluminium sheet metal
Commands and indicators	Emergency stop button Safety key to activate marking mode “Machine on” indicator light ”Machine ready to mark” indicator light

Find out more

Licences

Vision
Integrated high-performance proofreading systemThe high-performance Read & Verify system (available as an option) validates that marking has been carried out correctly and that 1D and 2D codes have been read correctly. This tool meets the needs of production control and part identification. In the industrial sector, permanent marking often takes the form of 1D or 2D codes such as Datamatrix or ECC 200, which are the best known and most widely used.

SERVICES

REQUEST YOUR FREE

quote – DEMO – DOCUMENTATION

Types of markings	Alphanumeric content
Straight marking	Text input
Angular marking	Serial number variable
Radiant marking	Data import variable
Mirror marking	Time stamp variable
1D and 2D code	Visual
Bar code	Logo
QR Code	Form
Datamatrix	Symbol
